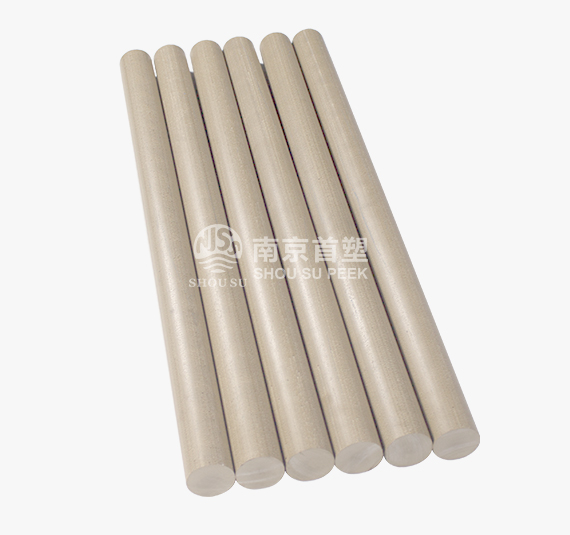

PEEK-G1030 rod is produced by continuous extrusion using polyetheretherketone resin and 30% glass fiber as raw materials. PEEK-G1030 rod has better rigidity, creep resistance, and dimensional stability, making it ideal for manufacturing structural parts.

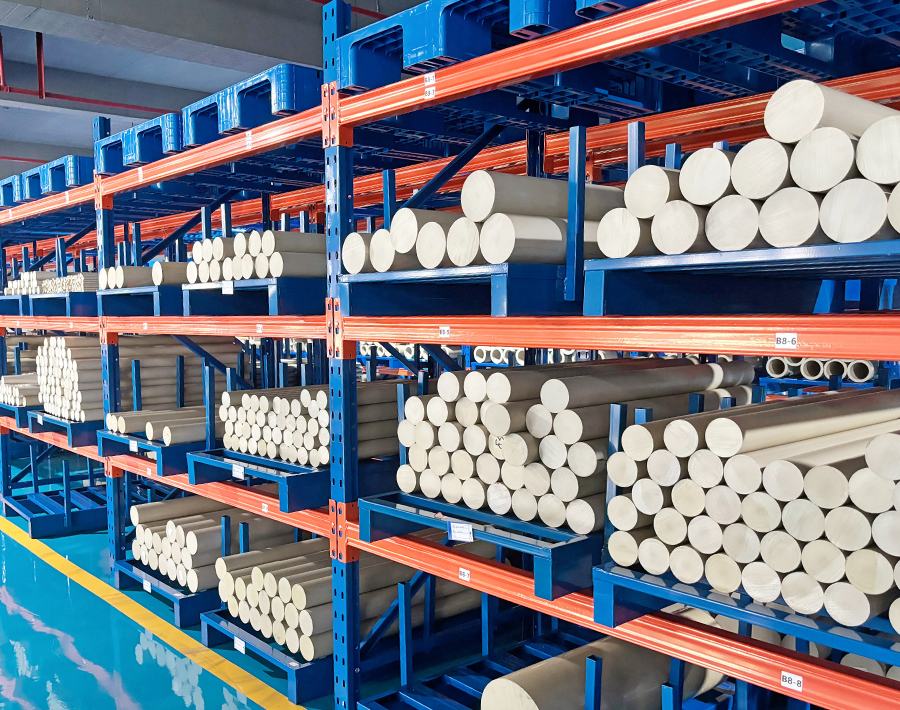

Nanjing Shousu has the independent extrusion production capacity for PEEK rods, the diameter is from 1mm to 300mm, and a large inventory is available.
| Diameter * Length (mm) | Weight(kg/m) | Diameter * Length (mm) | Weight(kg/m) |
|---|---|---|---|
| Φ4*1000 | 0.020 | Φ60*1000 | 3.940 |
| Φ5*1000 | 0.030 | Φ65*1000 | 4.544 |
| Φ6*1000 | 0.048 | Φ70*1000 | 5.262 |
| Φ7*1000 | 0.070 | Φ75*1000 | 6.245 |
| Φ8*1000 | 0.079 | Φ80*1000 | 6.795 |
| Φ10*1000 | 0.124 | Φ85*1000 | 8.105 |
| Φ12*1000 | 0.173 | Φ90*1000 | 8.685 |
| Φ15*1000 | 0.244 | Φ100*1000 | 10.750 |
| Φ16*1000 | 0.295 | Φ110*1000 | 13.100 |
| Φ18*1000 | 0.372 | Φ120*1000 | 15.738 |
| Φ20*1000 | 0.460 | Φ130*1000 | 18.177 |
| Φ22*1000 | 0.571 | Φ140*1000 | 21.124 |
| Φ25*1000 | 0.711 | Φ150*1000 | 24.380 |
| Φ28*1000 | 0.890 | Φ160*1000 | 27.054 |
| Φ30*1000 | 0.995 | Φ170*1000 | 31.510 |
| Φ33*1000 | 1.150 | Φ180*1000 | 34.385 |
| Φ35*1000 | 1.355 | Φ190*1000 | 39.260 |
| Φ40*1000 | 1.765 | Φ200*1000 | 44.150 |
| Φ45*1000 | 2.228 | Φ220*1000 | 52.490 |
| Φ50*1000 | 2.682 | Φ250*1000 | 68.150 |
| Φ55*1000 | 3.310 | Φ300*1000 | 100.500 |
Note:This table shows the specifications and weight of PEEK-1000 rod (pure), and the above specifications of PEEK-C1030 rod (carbon fiber), PEEK-G1030 rod (glass fiber), ESD PEEK rod and AST PEEK rod can be produced.The actual weight is subject to weighting. | |||
Focus on the R&D, design, production and composite modification of special engineering plastics such as PEEK, PI, PPS and PEI.
Have the ability of continuous extrusion molding, injection molding, compression molding, machining molding and other molding processes.
Design, processing, manufacturing and modification of extrusion mold, compression mold and injection mold.
PEEK, PI, PPS, PEI and other parts and products are customized according to drawings and samples.

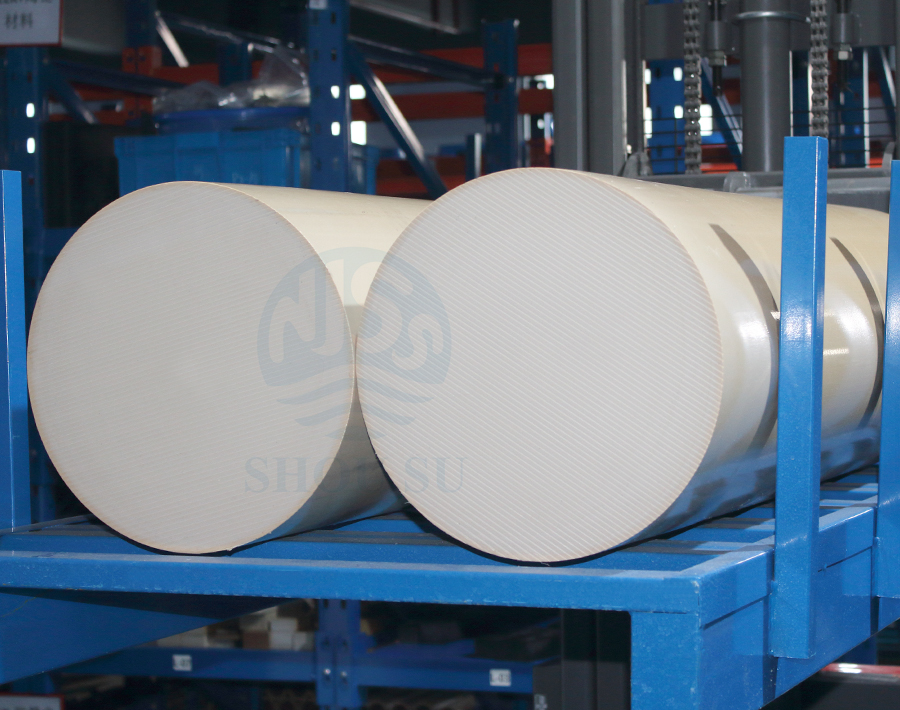

Continuous extrusion molding of PEEK, PI, PPS and other bars, plates, pipes and sheets.
The research and development and production of new products and fields of special engineering plastics will jointly promote the application of PEEK, PI and other special engineering plastics products in various industries.
